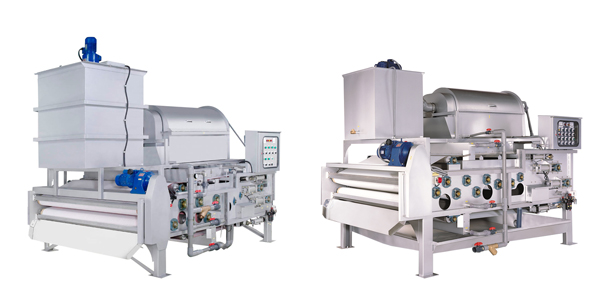

Belt Presses
TB Series Technical Data

Model Machine Frame Material Structure Type Cloth Width (mm) Treating Capacity with 1% - 2% S.S Moisture Contents
(depends on sludge feature)
Wet Sludge (M3/hr) Dried Sludge (kgd.s/hr)
TB-500 SUS304 Frame w/ Side plate 500 1.0-2.5 10-50 68-85
TB-750 SUS304 Frame w/ Side plate 750 2.0-4.0 20-80 68-85
TB-1000 SUS304 Frame w/ Side plate 1000 3.0-5.0 30-100 68-85
TB-1250 SUS304 Frame w/ Side plate 1250 4.0-6.5 40-130 68-85
TB-1500K SUS304 Frame w/ Side plate 1500 5.0-8.5 50-170 68-85
TB-1500 SUS304 Frame w/ Side plate 1500 6.5-11 65-220 67-85
TB-2000 SUS304 Frame w/ Side plate 2000 9.0-15 90-300 67-85

Model Power Consumption (Hp)
Motor Power (Hp) Cloth Washing Pump (Hp) Air Compressor (Hp)
Driving Motor
(Speed Variable)		 Disposal Tank
Agitator		 Mud/Water
Scalping Screen		 Conventional
low-pressure fixed Type		 Patented high-pressure
Reciprocation Type		 Fixed Type
Cleansing System		 Reciprocating Type
Cleansing System
TB-500 1/2 1/4 1/4 2 3 1/2 1
TB-750 1/2 1/4 1/4 2 3 1/2 1
TB-1000 1/2 1/4 1/4 2 5 1/2 1/2 2
TB-1250 1/2 1/4 1/4 3 5 1/2 1/2 2
TB-1500K 1/2 1/4 1/4 3 5 1/2 1/2 3
TB-1500 1 1/2 1/4 3 6 1/2 3
TB-2000 1 1/2 1/2 5 8 1/2 1/2 3

TE Series Technical Data

Model Machine Frame Material Structure Type Cloth Width (mm) Treating Capacity with 1% - 2% S.S Moisture Contents
(depends on sludge feature)
Wet Sludge (M3/hr) Dried Sludge (kgd.s/hr)
TE-1000 SUS304 Beam Frame 1000 4.0-8.5 40-170 65-84
TE-1500 SUS304 Beam Frame 1500 8.0-15 80-300 65-84
TE-2000 SUS304 Beam Frame 2000 12-21 120-420 65-84
TE-2000L SUS304 Beam Frame 2000 16-26 160-520 64-84
TE-2500L SUS304 Beam Frame 2500 21-33 210-660 64-84

Model Power Consumption (Hp)
Motor Power (Hp) Cloth Washing Pump (Hp) Air Compressor (Hp) Lower Collecting Tray for Pressed Filtrate
Driving Motor
(Speed Variable)		 Disposal Tank
Agitator		 Mud/Water
Scalping Screen		 Conventional
low-pressure fixed Type		 Patented high-pressure Reciprocation Type Fixed Type Cleansing System Reciprocating Type Cleansing System
TE-1000 1 1/2 1/4 3 6 1 3 YES
TE-1500 1 1/2 1/4 3 6 1 3 YES
TE-2000 1 1/2 1/2 5 8 1/2 1 5 YES
TE-2000L 2 1/2x2 1/2x2 5 9 1/2 2 5 NO
TE-2500L 2 1/2x2 1/2x2 7 1/2 9 1/2 2 7 1/2 NO
