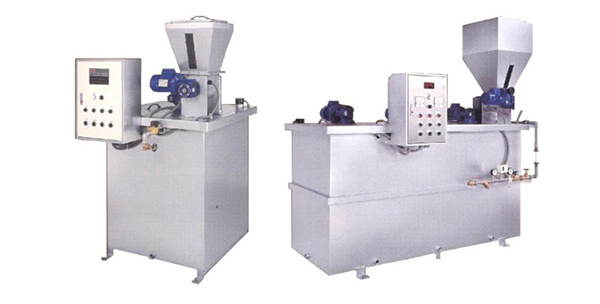

| Full Automatic Dissolvers |
 |
| PL1 Automatic Batch type single-tank Dissolver |
| Model |
Machine Structure |
Solution
Production
Capacity
(Lt/hr) |
Powder
Feeding
Hopper
Size(L) |
Metering Feeder
Power
(Fixed Speed)
(Hp) |
Agitators
(Hp) |
Material of Tanks |
| Standard |
Optional |
| PL1-500 |
Single tank,
Batch type |
500 |
55 |
1/4 |
1/2 |
SUS304 |
SUS316
P.P.
P.V.C.
F.R.P. |
| PL1-1000 |
1000 |
55 |
1/4 |
1 |
| PL1-1500 |
1500 |
110 |
1/4 |
1 |
| Model |
Pipeline Holes Dia.
(Inner Threaded) |
Machine Dimensions
(mm) |
Machine
Weigh
(Kgs) |
| Water
Inlet |
Solution Discharge |
Overflow
Hole |
Drainage Holes |
(L) |
(W) |
(H) |
L1 |
w1 |
| PL1-500 |
3/4" |
1" |
1" |
1" |
1000 |
1150 |
1860 |
800 |
930 |
200 |
| PL1-1000 |
1" |
1" |
1" |
1" |
1150 |
1350 |
1980 |
1000 |
1130 |
270 |
| PL1-1500 |
1" |
1" |
1" |
1" |
1350 |
1550 |
2250 |
1200 |
1330 |
380 |
|
|
PL3 Full Automatic Continuous type three-tank Dissolver |
| Model |
Machine Structure |
Solution
Production
Capacity
(Lt/hr) |
Powder
Feeding
Hopper
Size(L) |
Metering Feeder
Power
(Fixed Speed)
(Hp) |
Agitators
(Hp) |
Material of Tanks |
| Standard |
Optional |
| PL3-500 |
3 tank,
Continuous type |
500 |
55 |
1/4 |
1/4x3 |
SUS304 |
SUS316
P.P.
P.V.C.
F.R.P. |
| PL3-1000 |
1000 |
55 |
1/4 |
1/4x3 |
| PL3-1500 |
1500 |
110 |
1/4 |
1/2x3 |
| PL3-2000 |
2000 |
110 |
1/4 |
1/2x3 |
| PL3-3000 |
3000 |
200 |
1/4 |
1x3 |
| PL3-5000 |
5000 |
350 |
1/4 |
2x3 |
| PL3-8000 |
8000 |
550 |
1/4 |
2x3 |
| Model |
Pipeline Holes Dia.
(Inner Threaded) |
Machine Dimensions
(mm) |
Machine
Weigh
(Kgs) |
| Water
Inlet |
Solution Discharge |
Overflow
Hole |
Drainage Holes x 3 |
(L) |
(W) |
(H) |
L1 |
w1 |
| PL3-500 |
1/2" |
1" |
1" |
1" |
1750 |
850 |
1700 |
1290 |
640 |
210 |
| PL3-1000 |
3/4" |
1" |
1" |
1" |
2050 |
950 |
2000 |
1480 |
740 |
360 |
| PL3-1500 |
3/4" |
1" |
1" |
1" |
2300 |
1100 |
2250 |
1650 |
900 |
420 |
| PL3-2000 |
1" |
1" |
1" |
1" |
2650 |
1250 |
2250 |
2010 |
1030 |
500 |
| PL3-3000 |
1" |
1 1/2" |
1 1/2" |
1 1/2" |
3150 |
1350 |
2500 |
2271 |
1130 |
650 |
| PL3-5000 |
1 1/2" |
1 1/2" |
1 1/2" |
1 1/2" |
3250 |
1650 |
2850 |
2500 |
1430 |
900 |
| PL3-8000 |
2" |
2" |
2" |
2" |
4750 |
1850 |
3200 |
3970 |
1630 |
1280 |
|
